Sensing Distance Sn* 20 m 40 m
Emitter / Receiver Emitter Receiver Emitter Receiver
Product Code NPN NO PEB30DC-TPC-E20NNO PEB30DC-TPC-R20NNO PEB30DC-TPC-E40NNO PEB30DC-TPC-R40NNO
NPN NC PEB30DC-TPC-R20NNC PEB30DC-TPC-R40NNC
NPN NO + NC PEB30DC-TPC-R20NNB PEB30DC-TPC-R40NNB
PNP NO PEB30DC-TPC-R20PNO PEB30DC-TPC-R40PNO
PNP NC PEB30DC-TPC-R20PNC PEB30DC-TPC-R40PNC
PNP NO + NC PEB30DC-TPC-R20PNB PEB30DC-TPC-R40PNB
Output Indicator LED, Green LED, Yellow LED, Green LED, Yellow

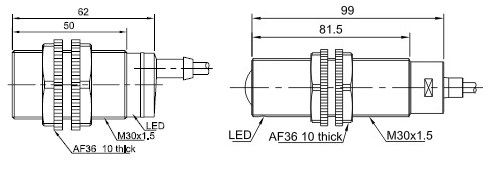

Housing Size (mm) M30 × 1.5 × 62
Light Type Infrared LED（880 nm）
Supply Voltage 10…30 V DC
Voltage Drop ≤ 2.5 V
Response Time Max. 8.2 ms
Load Current ≤ 200 mA
No-Load Current ≤ 25 mA
Hysteresis 3…20 %
Repeat Accuracy ≤ 5 %
Protection Circuit Reverse Polarity, Short-Circuit and Surge Protection
Ambient Temperature -15…+55 ℃
Ambient Moisture 35…95 %
Enclosure Type (IEC 60529) IP67
Housing Material PBT
Connection PVC Cable 2m
Approvals / Conformity CE
