Product Code LKM12-S8P4-NNO-C
Connection Method M12 Connector, Threaded, 4-Wire
Number of Sockets 8
Number of Positions 4-Pos.
Supply Voltage 10 V … 30 V DC
Supply Current Max. 4 A / Socket (Totally 10 A)
Contact Insulation Resistance Max. 8 mΩ
Output Status NO

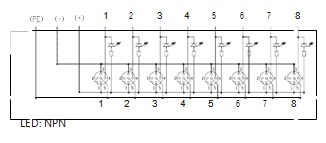

Output Type NPN
Status Display Yellow LED
Ambient Temperature -20 °C ~ 80 °C

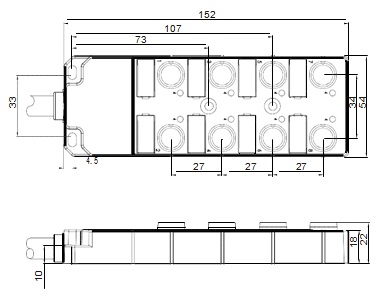

Mounting Type Mounting on Wall or Plate
Material Socket Contact Carobronze
Nut Nickel-Plated Copper
O-Ring FKM
Potting Ethoxyline
Body Material PA66 and GF
Controller Connection 5 m PVC Cable
